WavePointer BUTTON
Interaction and feedback from anywhere.

Whether action, control or feedback. WavePointer Button is always where the interaction is needed - safe and easy.

The WavePointer BUTTON is used wherever an interaction has to be transmitted quickly and reliably via radio. This can be e.g. an order, a feedback, a confirmation or an evaluation.

WavePointer Button can transmit this information via Bluetooth (BLE), NB-IoT, LoRa WAN, Sigfox and up to 15 kilometers to a radio receiver.

The BUTTON works completely independently of an external power source on the basis of a rechargeable battery or battery. This makes it usable almost everywhere.

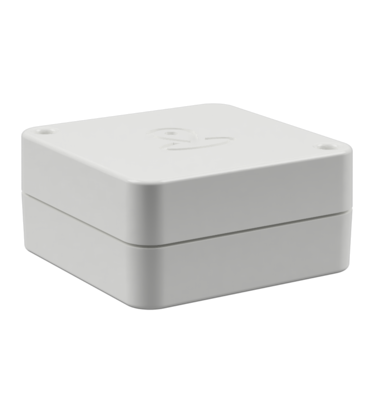

The BUTTON can be supplied as an assembly (from 25/25/18 mm) or with a - also individual - housing. IP protection requirements can also be met.





Features & Benefits

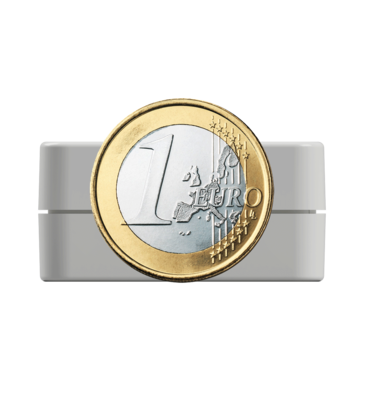

  • The BUTTON is ultra small and light: from 25*25*18 mm
  • Special antenna technology achieves ranges > 10 kilometers
  • The BUTTON information can be captured over long distances by a receiver.
  • Information can be transmitted in real-time, e.g. to the WavePointer Cloud, and retrieved worldwide.
  • Extremely high signal strength even under difficult operating conditions
  • Very long battery life thanks to efficient energy management. Battery usually replaceable.
  • Individual firmware possible
  • The BUTTON can be called up as an assembly, in full potting or in housing variants.
  • Support of special protection classes against water, heat, dust, acid and for concrete etc.
  • Encrypted firmware and data transfer

Technology

    • One pressure point
    • Multiple pressure points
    • Variable pressure point behaviour (single, double, long etc.)
    • LED indicator
    • As PCB module or in individual housing
    • Various radio standards (BLE, NB-IoT, LoRaWAN, Sigfox etc.)

Return on Investment

  • Cost-effective acquisition costs
  • Fast commissioning
  • Virtually unlimited service life
  • Demand-driven service costs
  • Firmware update
  • Adequate guarantee arrangements
  • Environmentally friendly recycling



Technical Details

Product Name

WavePointer BUTTON

Application

Feedback button, Order button, Action button, Control button, Multi use button, Digital label, Identification, Warehousing, Object marking, Inventory management, Process management, Production control, Asset management etc.

Connectivity Options

Radio Outbound: LoRA WAN, Sigfox, Bluetooth (BLE), Zigbee, NFC, RFID, 4G, NB-IoT etc.

GNSS: GPS / QZSS, BeiDou, Galileo, GLONASS

Dimensions (PCB)

25/25/12
In millimeter
Inclusive of energy

Delivery Options

PCB only
With housing

Casing Options

Standard casing (ABS), Individual Casing, IP Classes, Sealing

Certifications

CE, LoRA WAN, BLE etc.

Energy Options

Battery

Firmware

Standard Firmware
Individual Firmware

Customization

Possible on request
100% control of PCB-Components
100% control of Firmware

Other

Ultra low energy components, Firmware energy optimized, Miniaturized, Range optimization, Lightweight, Certified

Do you have individual requirements?

WavePointer TAG, SENSE, CONTROL and GATEWAY also serve as a modular IoT base platform. Use the extensive modules to quickly and flexibly map your requirements with regard to individual sensor technology and control.

Contact us if you need electronic modules for installation or your own housing designs for your area of application. We will then gladly take care of planning, prototyping and production.
